320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions

Name: 320W Adcol recirculating liquid Baths are designed to provide coolingampheating for a wide range of liquid solutions
Brand: Adcol
Price: 1 USD

China 320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions factory

Brand Name : Adcol

Model Number : ARB320-02

Certification : ISO9001 , CE

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T , Paypal

Supply Ability : 200pcs per month

Delivery Time : 3 - 4 weeks

Packaging Details : Solid carton packaging, wooden case

P/N : ARB320-02

Control Method : Cooling/heating automatic PID contro

Heat Radiation : Peltier element(Liquid-Cooled

Operating Temp : 0~60℃(for Water ≥4℃)

Temp. stability : ±0.04℃

Temp. distribution : ±0.04℃

Cooling Capacity : 320W @T-bath=25℃;T-facility=25℃

Heating Capacity : 700W @T-bath=25℃;T-facility=25℃

Bath Liquid : Water : 4-60℃ Ethylene glycol-Water(≤50%) : 0-60℃

Drain Port size : CPC Coupling PLCD 16004

Power supply : 94~265 VAC, Single phase, 50/60HZ, 600W

Over Current Protection : Rated current, 10A

Serial COMM : RS485( RS 232 Optio

Alarm Output : High/Low temp alarm, Output cutoff alarm

Temp. Sensor : PT100, 3 wire

Size bath : W300xD350xH400mm Usable Dept: 370mm

Size overall : W350xD510xH550mm

Weight : Approx. 25KG

Contact Now

Adcol Peltier Thermal Cooler is your perfect choice for any Industrial, Commercial or Home application. Adcol is a well-known brand name from China and all of our Peltier Thermoelectric Modules have been certified with ISO9001 and CE.

The solid carton packaging ensures secure delivery and payment terms include T/T and Paypal. We guarantee a supply ability of 500pcs per month.

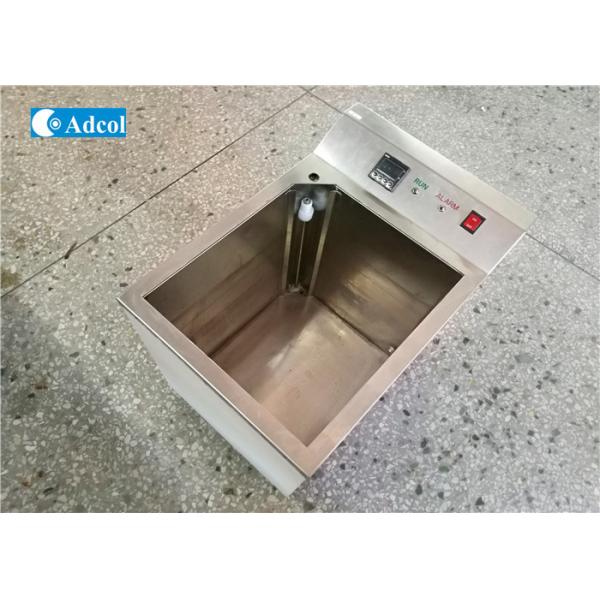

320W Thermoelectric Recirculating Liquid Bath

1.Introduction:

Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range

of liquid solutions, and can be used for cooling &heating in thermal test, Reactor Vessels,

Evaporators, Reaction Calorimetry, Physical and chemical analysis, Life science and other

relative applications.

320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions

2.Technical Specifications:
Standard Features

Fast cooling and heating with precise temperature
Easy to operate
Quiet
Programmable Digital Temperature Controller
Auto-tune of PID control terms
System Error Monitor and alarm
Fluid inlet and outlet quick disconnect
High reliability

3.Application

Evaporation of chemicals for MOCVD
Temperature control of diffusion gas
Thermal test with immersion
Indirect temperature control of chemicals and liquid with high viscosity

4. Performance Chart

320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions

5.Design drawings

320W Adcol re-circulating liquid Baths are designed to provide cooling&heating for a wide range of liquid solutions
